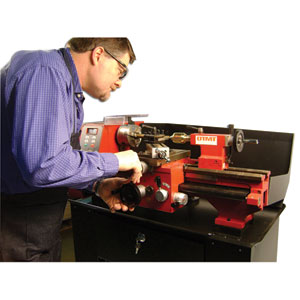

OTMT SC4 Bench Lathe
Click here to check out this product's manual   Click here to check out this product's manual
OTMT SC4 Bench Lathe

Extremely well-made inside and out with an easy to use and aesthetically-pleasing design and appearance, this bench lathe will become one of the most efficient and productive tools in your machine shop. It s highly accurate for maximum efficiency and is ideal for a variety of common cutting and shaping jobs. It s also capable of producing cylindrical and tapered shapes from many types of material including iron, steel and plastics.

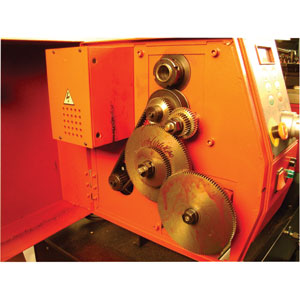

The SC4 lathe is equipped with everything the operator needs to do great work including an electronic speed control for strong torque at all speeds, electronic braking and instant direction reversal for jobs such as tapping. The powerful 1000-watt brushless motor is completely sealed to prevent damaging corrosives like dirt, dust, oil, metal chips and other contaminants where they belong outside the motor housing. The motor is also permanently lubricated and maintenance-free so you save money on operating costs. Using the change gears included, power feed rates may be adjusted and a wide range of both metric and SAE external and internal threads can accurately be cut with dimensions of 0.001" or better possible. Suitable for bench mounting.


BENEFITS:
  • Powerful and efficient 1000-watt brushless motor for low-cost operation.
  • Adjustable feed rates.
  • Accurately cuts both metric and inch threads.

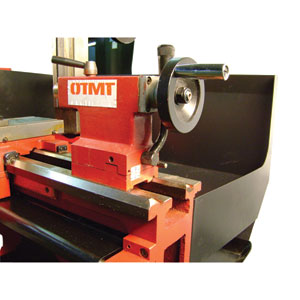

  • Quick-locking tailstock.
APPLICATIONS:
  • Used for precision turning parts in cast iron, steel, alloy steel and non-metal.
  • Ideal for workshops, professionals or individuals.
  • Cut metric and inch threads.
FEATURES:
  • Brushless motor.

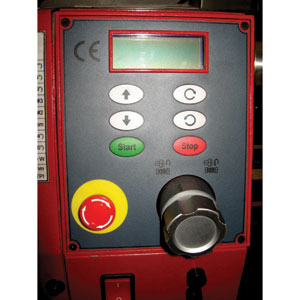

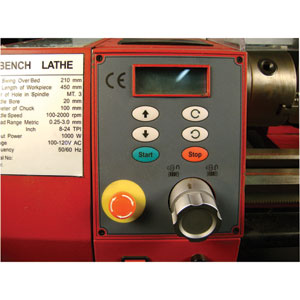

  • Touching switch panel.
  • Digital spindle speed read out.

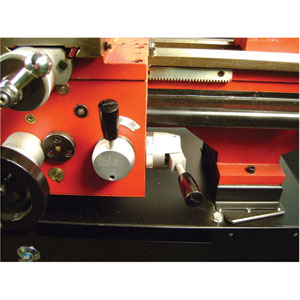

  • Cross and longitudinal auto feed.
  • Quick lock tailstock.
Buy Item 87-116-020 at www.travers.com
SPECIFICATIONS:
Item # 87-116-020
Unit of Measure each
Catalog Price (USD) $1,749.99 each
Must Buy 1
Country of Origin Import
Shipping Restrictions Truck Ship Only (fixed freightr charge)
Type SC4 Bench Lathe
Model # OT218410
Motor Horsepower 1000W
Spindle Speed 150 ~ 2,000 RPM
Brand OTMT

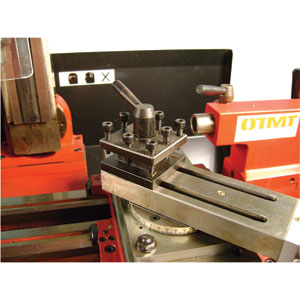

Compound Slide Travel 3.93" (100mm)
Distance Between Centers 16.14" (410mm)
Hole Through Spindle .787" (20mm)
Overal Dimensions 39.37"L x 21.65"W x 15.74"H
Spindle Taper MT3
Swing Over Bed 8.58" (218mm)
Tailstock Taper MT2

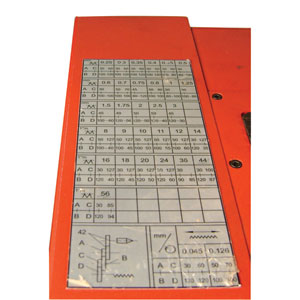

Thread Range 8" ~ 56" (0.25mm ~ 3.0mm)
Weight 275 lbs
Buy Item 87-116-020 at www.travers.com
